DC Ground Power Switching

All of these custom FeatherWings provide power switching by providing a ground connection.   They can be applied to AC loads as well, although they don't have the typical line voltage capability of 120 VAC.   They could also be re-designed to handle more current by putting more of the Power MOSFET's in parallel and using larger PCB traces.

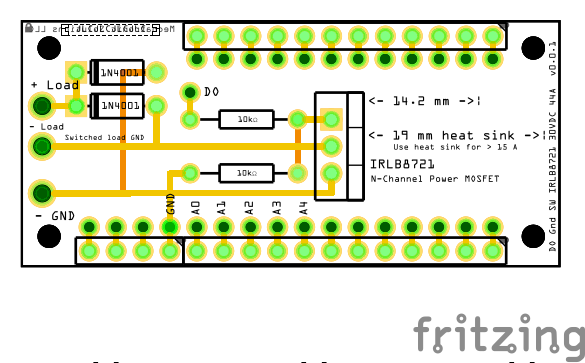

4.5 A at 30 V

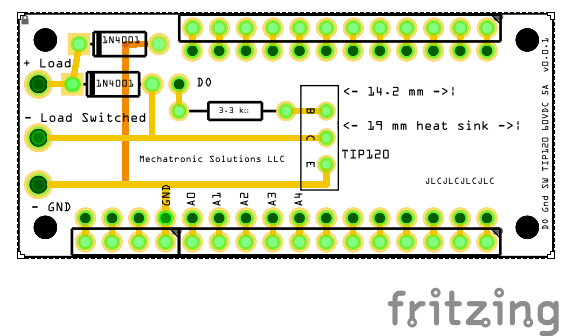

5 A at 60 V

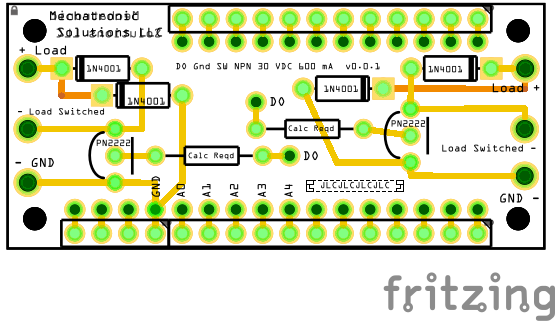

600 mA at 30 V





---
