DC Voltage Detection

In order to monitor voltage of a circuit without affecting the circuit being monitored, you need to use a high impedance voltage sensor.   An op-amp (voltage follower) will work, provided you select a low-noise, low-offset op-amp.   A digital multimeter set to measure DC voltage will typically have an input impedance of 10MΩ or greater (between probes).

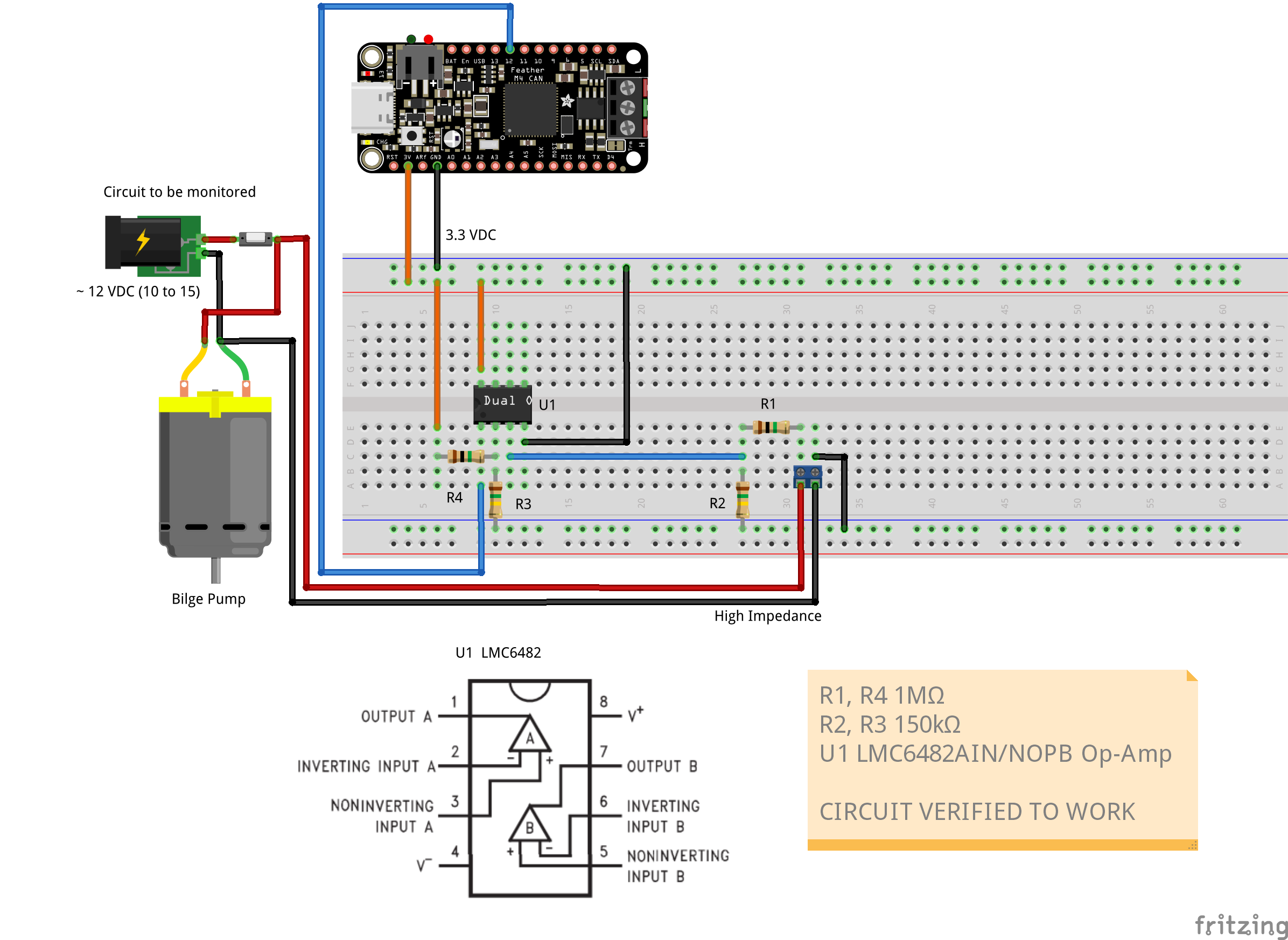

High Impedance 10 to 15 VDC Detection



Low Impedance 5 to 24 VDC Power Signal Detection

This custom FeatherWing detects the presence of a 5 to 24 VDC signal without adversely affecting the detected circuit.   It uses a 4N33 optocoupler/ optoisolator to detect the 5 to 24 VDC signal.   The resistor R1 on the FeatherWing is selected based on the voltage input range in order to create the minimum forward voltage of 1.25 V at the 4N33.
